Multi-Master Articulated Ladder

Model: M1
Style: Multi-Master® Articulated Ladder++

Features


18 positions:
3-position Multi-Lok® hinge allows for 18 positions or applications

  1. Double stepladder++
  2. Stepladder
  3. Stairwell ladder
  4. Multi-shelf
  5. Stand-off ladder

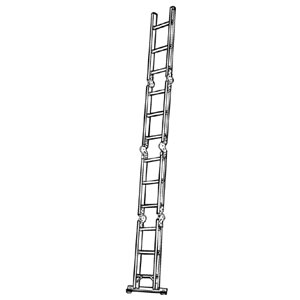

  6. Fully extended straight ladder
  7. 1/2 & 3/4 length straight ladder
  8. Self-supporting scaffold
  9. Extended span scaffold
  10. Stairwell scaffold

Plus Others

  • Slip-resistant feet
  • Comes fully assembled except for bolt-on base
  • Slip-resistant multi-directional round rungs
  • Shippable by UPS
  • Tested to ANSI applicable codes

++ Designed for one or two person jobs. Note: When used as a double stepladder, the maximum load per side, including person and materials, shall not exceed the duty rating of ladder.

Note: Set-up of some positions requires additional equipment, not included.

Specifications

Model No.Size of StepladderClosed HeightScaffold HeightStraight Ladder LengthApprox. Cu. Ft. Per UnitApprox. Shipping Wt. Lbs.
M1-6-126′3′ 4-5/8″3′12′4.033.5
M1-8-168′4′ 4-5/8″4′16′5.239.5
