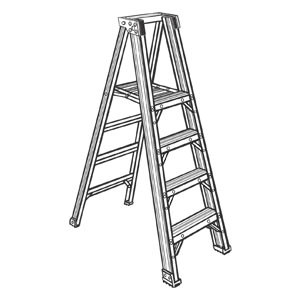

Model: P400
Style: Platform Ladder
Features
- Safety guard rail
- Slip-resistant Traction-Tred® extra wide steps are double riveted and knee-braced
- Slip-resistant foot pad
- Full set of rear horizontals are spaced one per foot
- Large, platform provides secure and comfortable work area
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
- Thick side plates
- Internal spreaders on 8′ and above
- 10′, 12′ and 14′ are 300 lbs. Load Capacity, Type IA Duty Rating
Downloadable Product Information
Aluminum Stepladder Comparisons
PDF 60.9KB
Specifications
| Model No. | Height (Size) to Platform | Size | Approx. Width | Approx. Spread | Approx. Cu. Ft. Per Unit | Approx. Shipping Wt. Lbs. | Duty |
| P404 | 4′ | 6′ | 24-3/4″ | 42-1/16″ | 7.1 | 25.0 | 375 lbs. Load Capacity – Type IAA |
| P406 | 6′ | 8′ | 28-1/4″ | 54-3/4″ | 10.1 | 33.5 | 375 lbs. Load Capacity – Type IAA |
| P408 | 8′ | 10′ | 31-3/4″ | 79-1/2″ | 20.3 | 45.5 | 375 lbs. Load Capacity – Type IAA |
| P410 | 10′ | 12′ | 35-1/4″ | 79-3/8″ | 20.3 | 54.5 | 300 lbs. Load Capacity – Type IA |
| P412 | 12′ | 14′ | 38-3/4″ | 91-11/16″ | 25.2 | 66.0 | 300 lbs. Load Capacity – Type IA |
| P414 | 14′ | 16′ | 42-1/4″ | 104″ | 31.1 | 79.5 | 300 lbs. Load Capacity – Type IA |
